Sahara X-Master exterior
Off-Road

Sahara X-Master

Explore the wild without leaving comfort behind.

Choose your build
Size

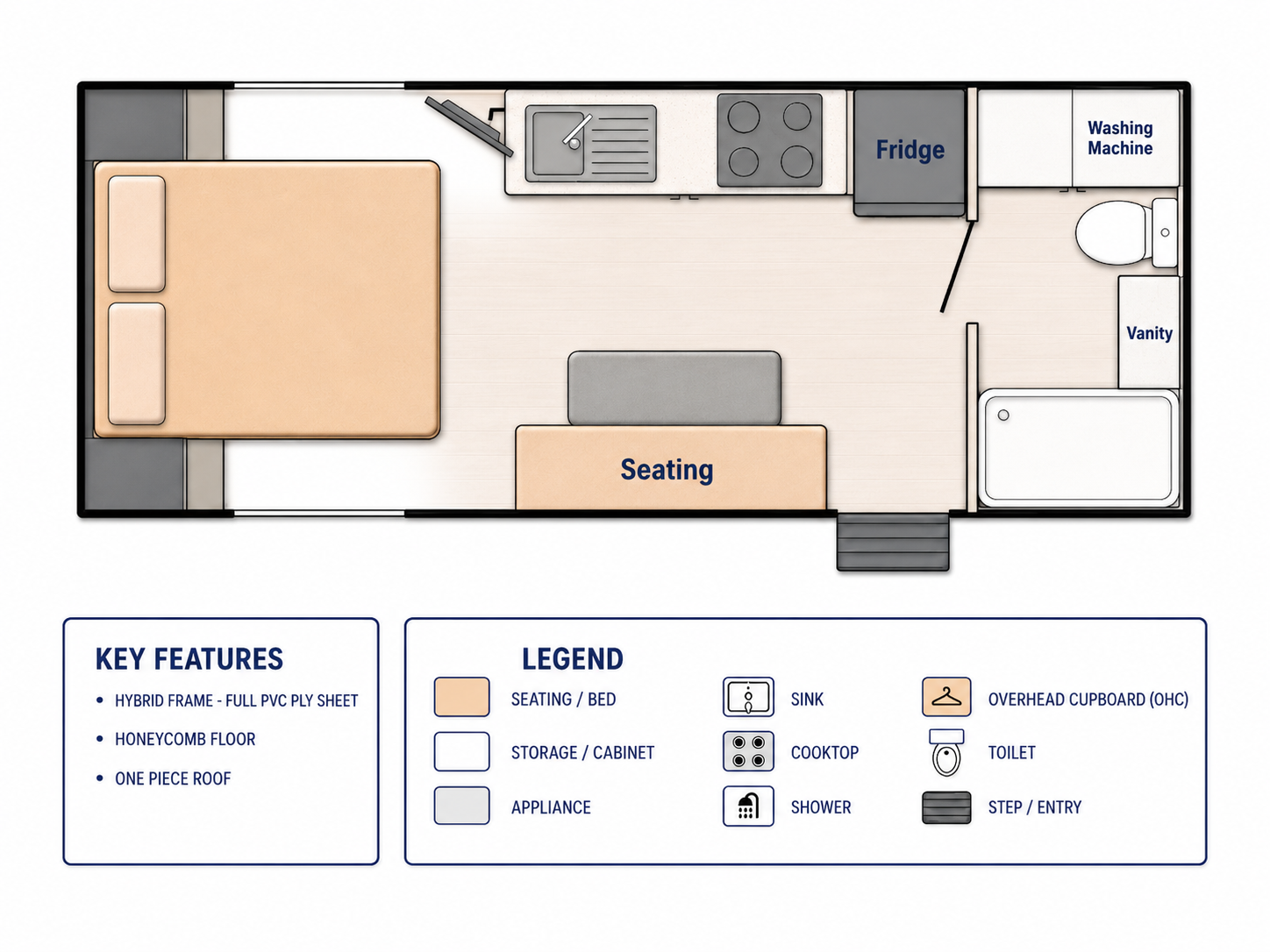

Sahara X-Master: 17'6 floor plan

Sample layout: every Sahara is fully customisable to suit how you travel.

About the X-Master

The X-Master is your ultimate companion for off-grid adventures. Matte-black body, checker-plate armor, tandem off-road suspension and a fully stocked electrical bay mean you can head well past the blacktop and stay out for weeks. Pick between the compact Standard 196 single-body tourer or the 226 Slide-Out. Where a roadside wall extrudes at camp to double the living space.

All of our vans can be built in aluminium frame or hybrid pvc/meranti.

Specifications

Full specifications are confirmed in writing with every order. Reach out for the current spec sheet.

SleepsUp to 6
Length17'6
TareTBC
GTMTBC
ATMTBC
Suspension3.0T independent coil-spring, single axle
Water190L (2 x 95L)
Warranty5 yr structural

Weights vary between builds. ATM, TARE and GTM figures are a guide only and are confirmed on your individual build plate.

Technical Specification

The full build sheet. Pick a category to see what's fitted as standard.

Trailer Coupling
DO35 3.5T coupling
A-Frame
6" with stone guard
Raiser
2"
Main Chassis Frame
3.2mm super-gal: Australian made, Australian steel
Suspension
3.0T independent coil-spring, single axle
Brakes
12" electric
Rims & Tyres
15": LT265/75R15
Wheel Arches
Galvanised
Water Tanks
2 x 95L freshwater
Grey Water Tank
Included
Tank Protection
Galvanised sheet
Toolbox
On A-frame, with gas bottle storage
Gas Bottles
2 x 9kg
Jerry Can Holders
1
Rear Bumper
3-bar galvanised
Entry Step
Single alloy
Quick Drop Corner Stands
Included

Specifications listed are guides. Final build is confirmed in writing on your quote. Weights vary between builds; ATM, TARE and GTM figures are confirmed on the build plate.

Upgrades

Build it the way you travel. The upgrades below are the ones we're asked about most. More power and solar for longer off-grid stretches, climate gear for harder country, kitchen and laundry add-ons, and touring extras that speed up camp setup. Pick what matters and we'll work it into your quote.

Available upgrades13 items
  • Additional solar panels
  • Solar blanket connection
  • Battery upgrade
  • Compressor fridge with DC-DC charger
  • Diesel heater
  • Fridge upgrade to 220L
  • Oven
  • Front-loading washing machine
  • Black Pack: black sinks, taps, shower
  • Electronic sway control
  • Annexe
  • Anti-flap annexe bars
  • Bike rack

Pricing varies by build configuration. Contact us for a current quote.

Ready to take the X-Master for a walk-through?

Visit our Campbellfield workshop or a dealer near you. We'll walk you through the build top to bottom.
