Semi-Off-Road

Sahara Dune

Adventure and comfort in balance.

Choose your build

Size

See the layout.

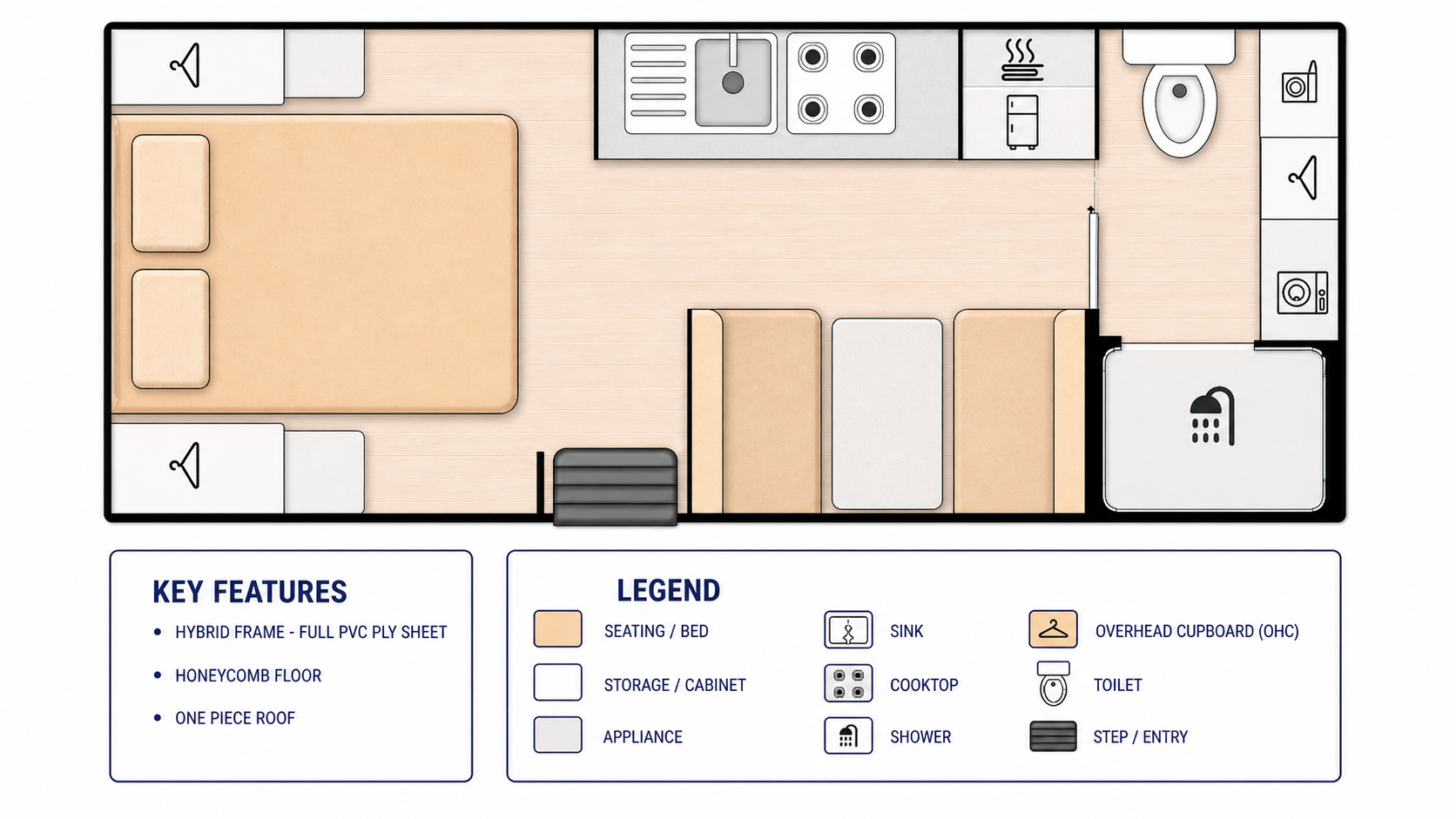

Sample layout — every Sahara is fully customisable to suit how you travel.

About the Dune

What's in the Dune.

The Dune is a free-camping tourer built for the long way around. An Australian-made 3.2mm super-gal chassis sits over 3.3-tonne independent coil-spring trailing-arm suspension, 235/75R15 off-road rims and 10" electric brakes. 420W of solar feeds 270Ah of lithium, so you can stay out for weeks — and inside, a queen bed, café dinette and full ensuite with one-piece shower, toilet and gas/electric hot water keep things comfortable wherever you stop.

All of our vans can be built in aluminium frame or hybrid pvc/meranti.

Gallery

Have a closer look.

Tap any photo to open the full-screen viewer.

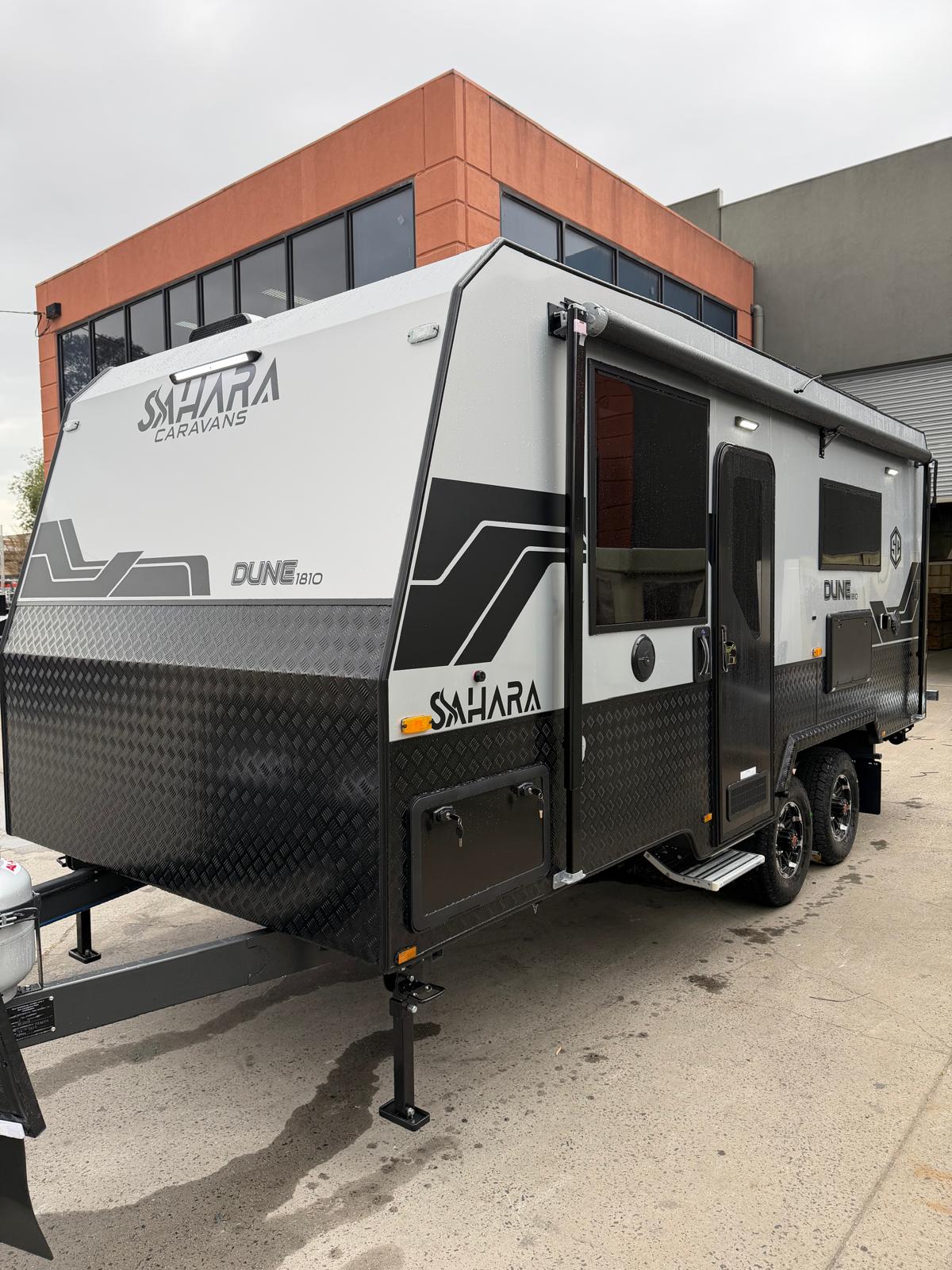

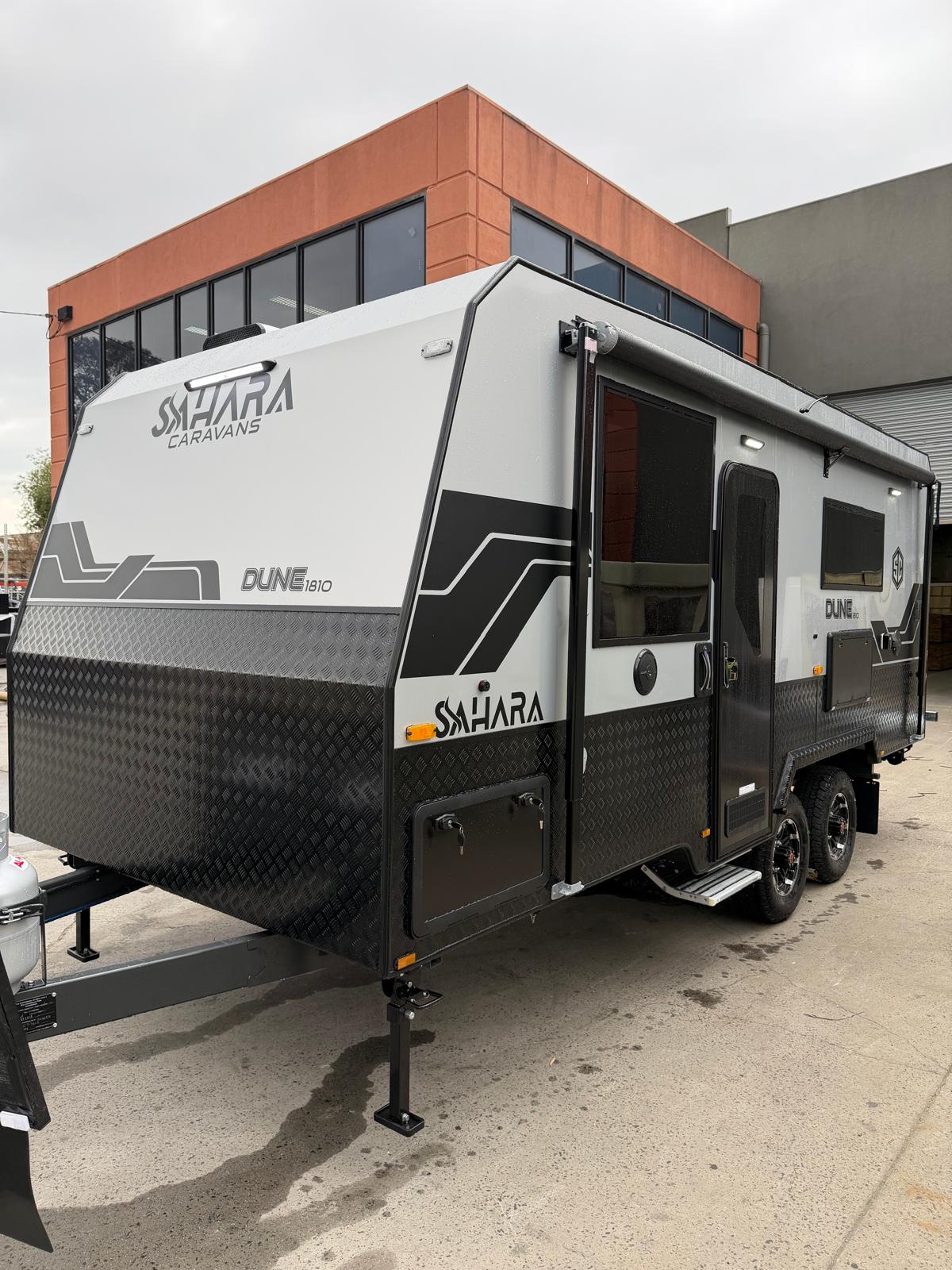

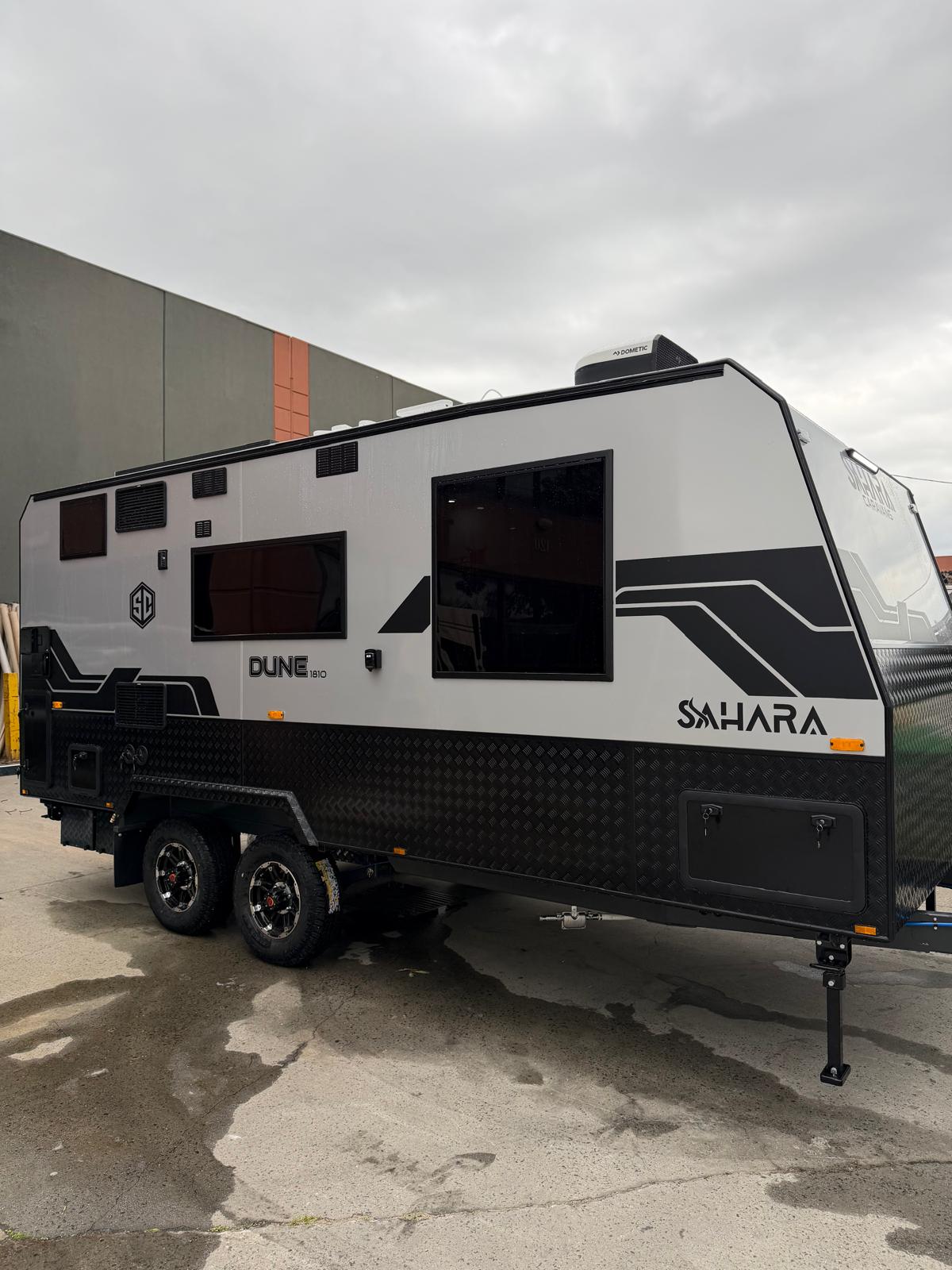

Outside

6 photos

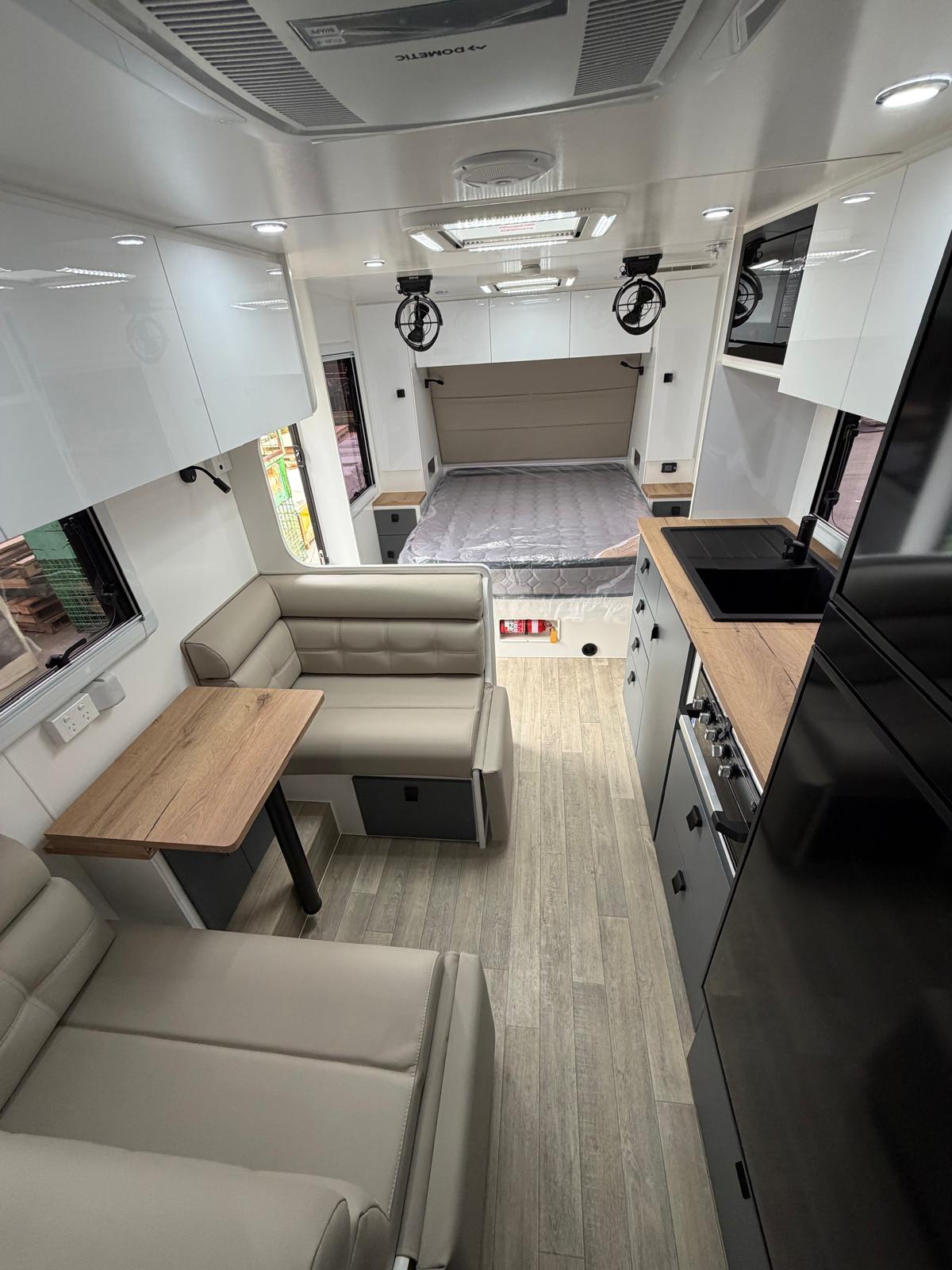

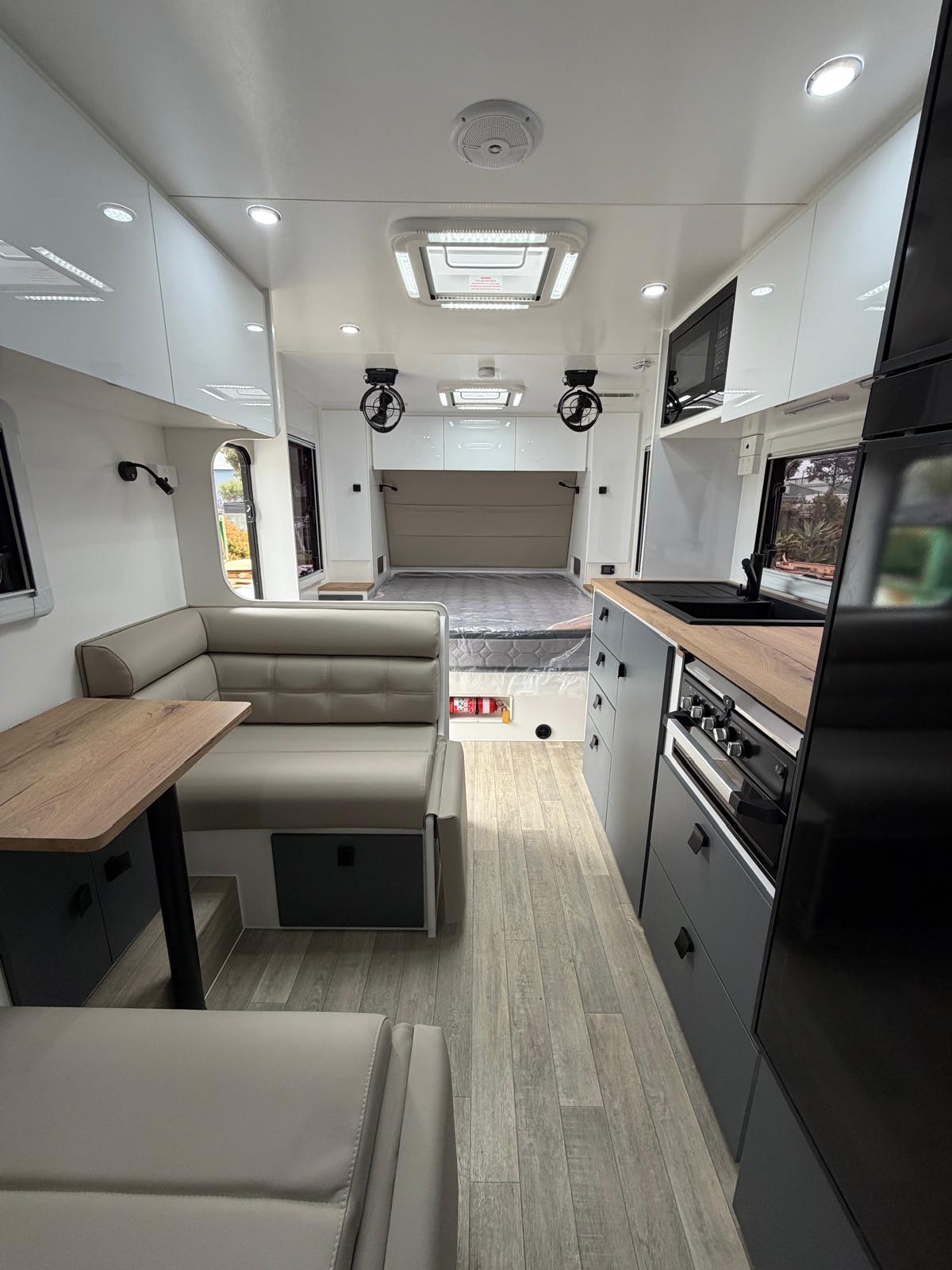

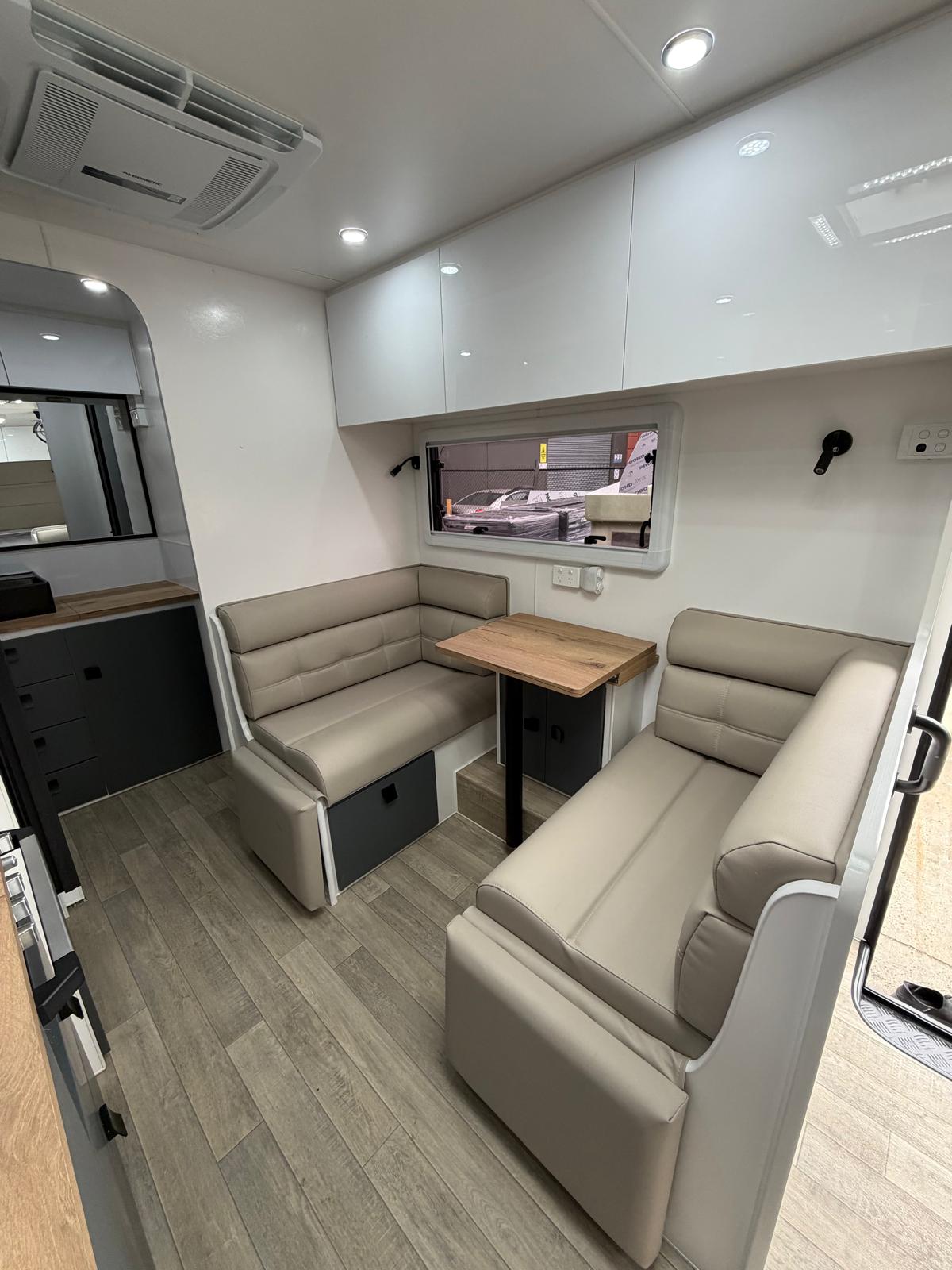

Inside

9 photos

Specifications

The numbers behind the build.

Full specifications are confirmed in writing with every order — reach out for the current spec sheet.

SleepsUp to 4

Length18'6

TareTBC

GTMTBC

ATMTBC

Suspension3.3T independent coil-spring, dual axle

Water190L (2 x 95L)

Warranty3 yr structural

Weights vary between builds — ATM, TARE and GTM figures are a guide only and are confirmed on your individual build plate.

Technical Specification

Every part, on the record.

The full build sheet — pick a category to see what's fitted as standard.

Trailer Coupling: DO35 3.5T coupling
A-Frame: 6"
Raiser: 4"
Main Chassis Frame: 3.2mm super-gal — Australian made, Australian steel
Suspension: 3.3T independent coil-spring, dual axle
Brakes: 10" electric
Rims & Tyres: 15" — 235/75R15
Wheel Arches: Galvanised
Water Tanks: 2 x 95L freshwater
Grey Water Tank: Included
Tank Protection: Galvanised sheet
Toolbox: Alloy, on A-frame — with gas bottle storage
Gas Bottles: 2 x 9kg
Jerry Can Holder: Included
Rear Bumper: 3-bar galvanised
Entry Step: Single alloy

Specifications listed are guides — final build is confirmed in writing on your quote. Weights vary between builds; ATM, TARE and GTM figures are confirmed on the build plate.

Upgrades

Make it yours.

Build it the way you travel. The upgrades below are the ones we're asked about most — more power and solar for longer off-grid stretches, climate gear for harder country, kitchen and laundry add-ons, and touring extras that speed up camp setup. Pick what matters and we'll work it into your quote.

Available upgrades13 items
